Filtering and Hilighting Log Lines
Basic Filtering and hilighting
Filtering and hilighting log lines is LogLlama’s bread and butter. These are the script commands you use:
| Command | Description |
|---|---|
: (color) |
Set the color to be used for following hilight commands. For the list of supported colors, see the source code for the ColorCommand. |
~ (regex) |
Hilight matches. |
= (regex) |
Hilight matches, and hide any lines with no matches. |
+ (regex) |
Hilight matches, and unhide any lines with matches. |
- (regex) |
Hide any lines with matches |
== |
Hide any lines with no hilights in them. |
chop |
Remove any hidden lines. Unhide will no longer be able to show them. Operations will run faster on the smaller set of lines |
clear |
Remove ALL lines. |
today |
Hide any lines that don’t contain today’s date. See below. |
Filtering at load time
If your log file is very large, you might not want to load the whole thing into memory. The following script commands are applied at load time. Any lines that are excluded by these filters are never loaded into memory and can’t be seen or unhidden. You might use this if you want to examine the history of a particular GUID or IP address within a very large log file.
| Command | Description |
|---|---|
required (regex) |
Don’t load lines unless they have a match. |
exclude (regex) |
Don’t load lines if they do have a match. |
requireToday |
Don’t load lines unless they contain today’s date. See below. |
limit (N) |
In any single file, don’t load more than N lines. |
clearFilters |
Reset any load filters. |
Modifying Lines
Once lines are loaded, they can be modified in memory.
| Command | Description |
|---|---|
truncate (N) |
Truncate all lines to at most N characters. |
replace (regex) (replacement) |
Replaced any matches. |
If you are working with fields, you can also sort lines by field. See SQL Queries for more information.
Example
Here are some scripts that demonstrate filtering and hilighting. You can generate a list of scripts
like this to try out by running the menu command File ... New with demo
# Example: create demo log and hilight race starts in Blue and crashes in Red
demo
: lightblue
~ \*\*\* Race \d+ \*\*\*
: red
~ CRASHED
# Example: show all starts, stops, and crashes for car 2
clear
demo
: lightgreen
= car=2
- event=LAP

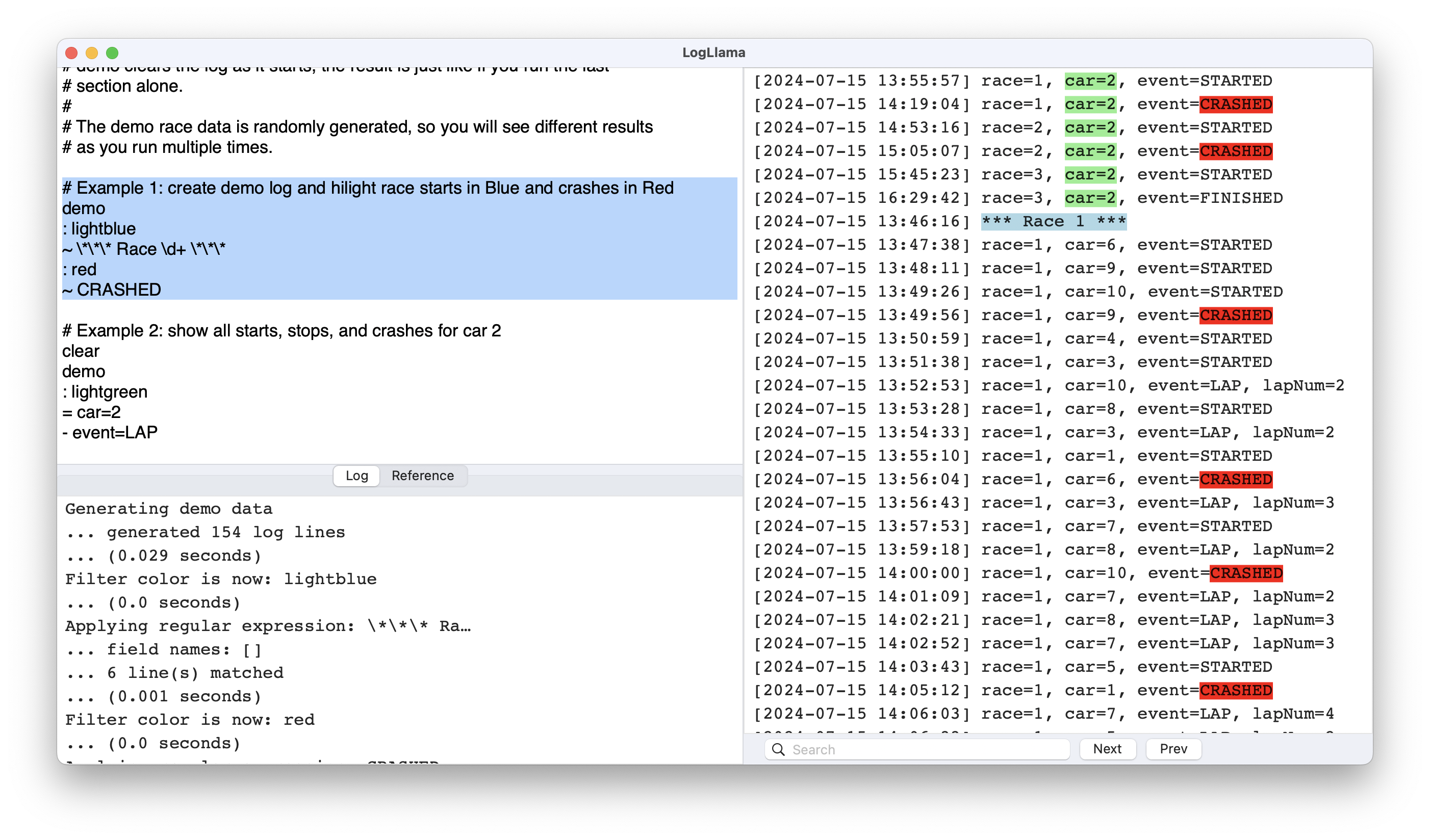

Here is what the output from the first example looks like:
Filtering by Today’s date
You can always filter lines by the current date with an explicit filter, for example = 2019-08-17.
To avoid modifying your script every day, use the commands today and requireToday instead. These commands dynamically create a filter based on the current date.
By default, the format used is MM.dd.YY. You can replace this with another format using the dateFormat command, for example dateFormat YYYY-MM-dd.
| Command | Description |
|---|---|
today |
Hide any lines that don’t contain today’s date. |
requireToday |
Don’t load lines unless they contain today’s date. |
dateFormat (format) |
Specify the format to be used with today and requireToday. |
